Surface Roughness Tester TLS432

1.Functions & Features

● Five optional sensors for measuring special shaped work-pieces.

● DSP chip controlled achieves high accuracy and fast testing speed.

● Matrix LCD screen displays all parameters and data.

● High quality with ISO/ DIN/ CE/ JIS/ FCC standards.

● Power supply: 3.7V rechargeable Li-ion battery.

● Standard Sensor: diamond stylus with radius 5μm, force 4mN(0.4gf), and angle 90°

● Available PC software for data management and Excel reports.

● Optional printer connecting by USB.

2.Standard Sensor

3.Technical Parameters

Model No.	TLS432
Roughness parameters	Ra、Ry、Rq、Rz、Rt、RSm、RS、Rp、Rv、R3z、RSk、 Rmax、Rmr
Measuring range	Ra:0.005-16μm Rz:0.02-160μm
Resolution	0.001μm
Maximum driving trip	17.5mm/0.7inch
Sample length/Range (L)	0.25mm, 0.8mm, 2.5mm/±20μm,±40μm,±80μm
Evaluation length	1.25mm, 4mm,5mm/Option from(1-5)L
Filtering methods	RC, PC-RC, GAUSS, D-P,
Accuracy	≤±8%
Repeat ability	<6%
Memory	100 Groups
Operating temperature	0 ºC -40 ºC
Weight	440g
Dimensions	119×47×65mm

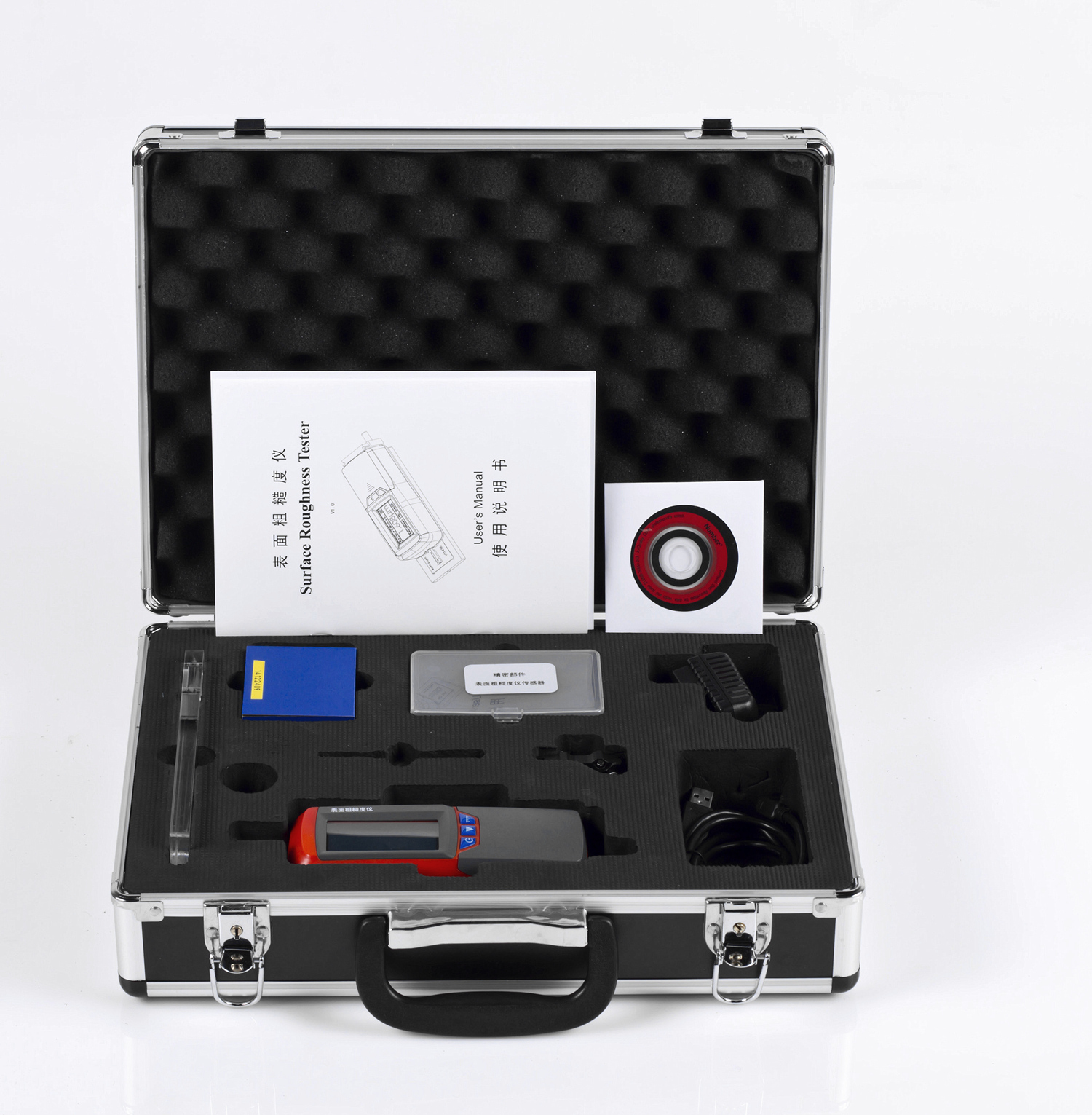

Standard configuration	Main Unit,Standard sensor,Calibration block, Supporting platform, Power charger, Manual,Certificate, Warranty card, PC analysis software

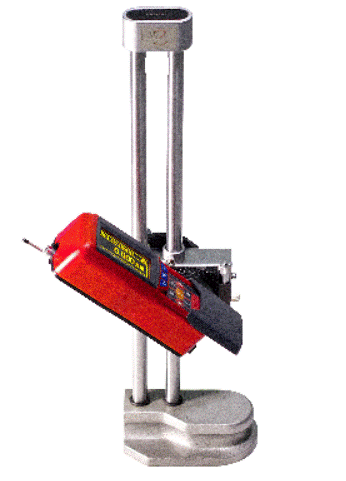

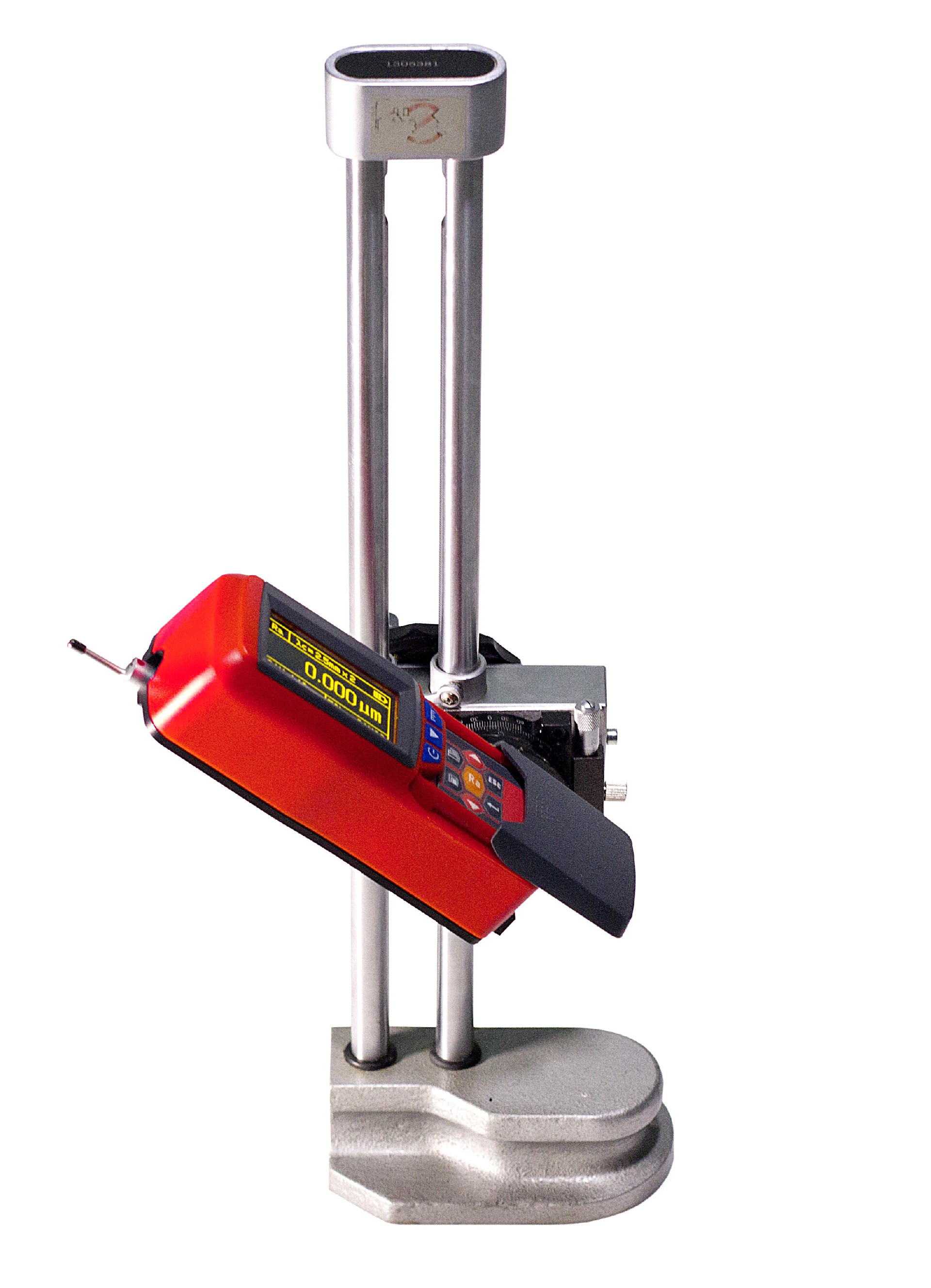

Optional Accessories	Measurement Platforms , optional sensors, printer

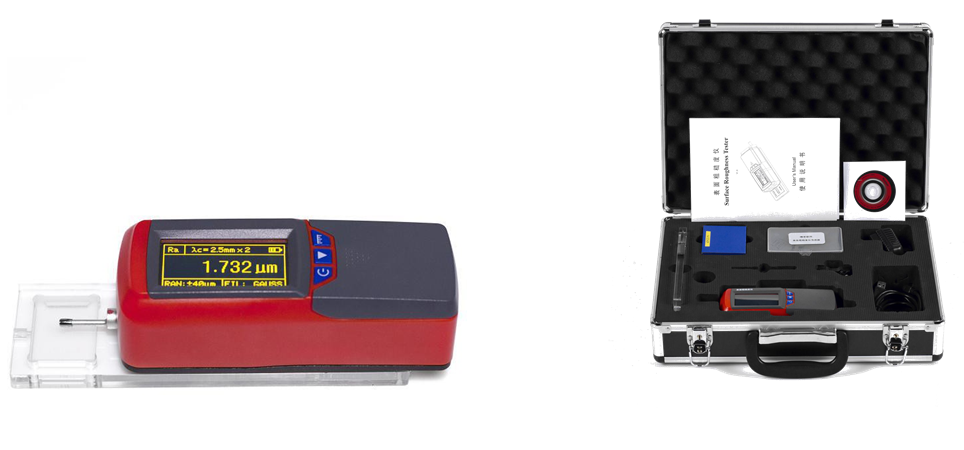

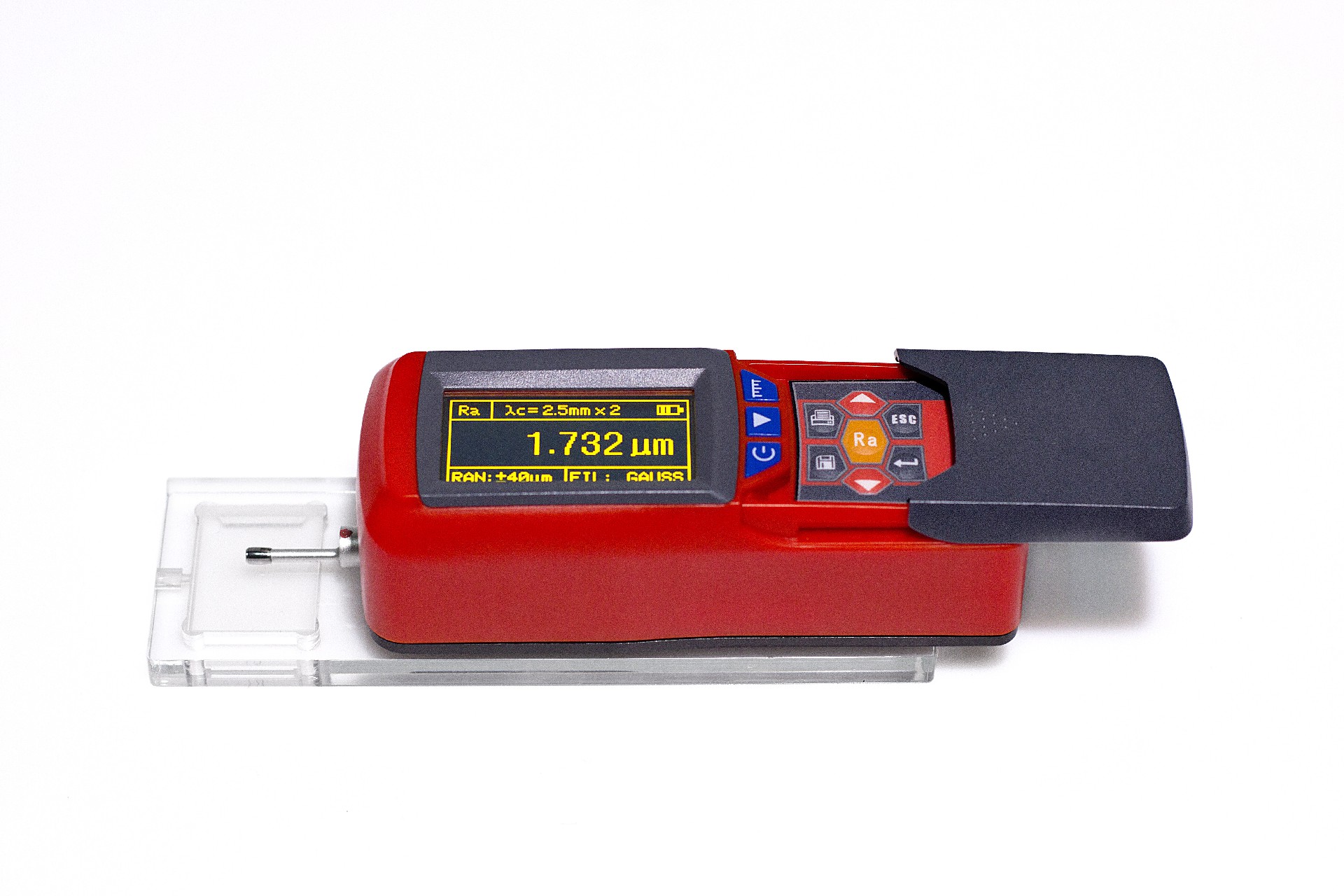

4.Pictures
